Product

Mobile Racking System

The Electric mobile shelving system, is a professional high-density intelligent warehousing system, is a set of upper computer WMS warehouse management software, imported PLC, inverters, sensors, 7-inch touch screen, Android intelligent mobile terminal collector, RFID, bar code technology system of intelligent storage function as one of the modern warehouse management system, the system only requires a channel, the utilization of space is extremely high.

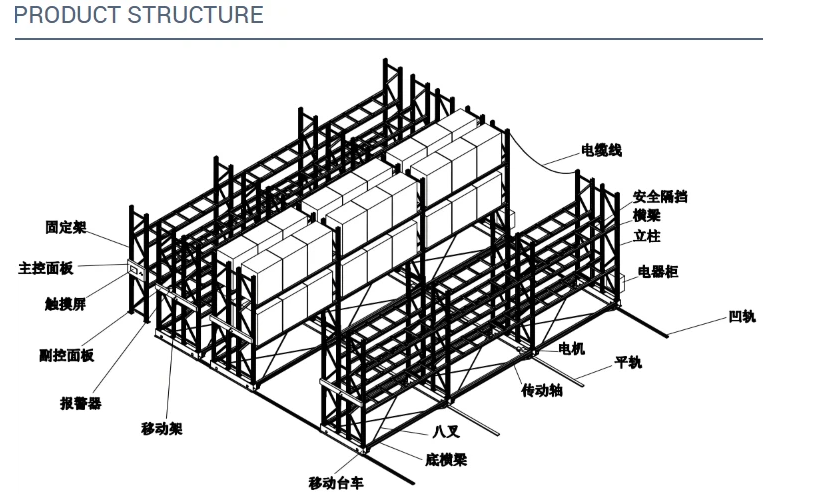

1.Mobile shelving units: These are rail mounted shelves that can be moved along the rails as needed.

2.Motorized Drive System: The motor and control system used to drive the shelving units along the track.

3.Central Control Unit: Responsible for coordinating the operation of the entire system, including the movement and positioning of shelves and access to goods.

4.User Interface: The interface through which the operator can enter commands to control the movement of the shelves and the access to the goods.

5.Safety System: Includes various sensors and emergency stop mechanisms to ensure safe operation.

6.Shelf Management System: Software system for tracking inventory, managing shelf locations and optimizing storage space.

Product Advantage
·High storage efficiency: only one aisle is needed, compared with traditional shelves, it can improve the utilization rate of the ground by about 80%.
·Flexibility: Provides high pickability, no need to look for aisles to access goods.
·Safety: Simple structure, safe and reliable, can be moved in case of power failure.
·Suitable for special environments: Suitable for special environments such as cold storage and explosion-proof warehouses.
·Easy to operate: intuitive and easy to operate, through the computer control, it is extremely convenient to find the goods.
·Seismic: It has good seismic resistance, after the earthquake, the shelves will move smoothly, and will not fall down directly.
